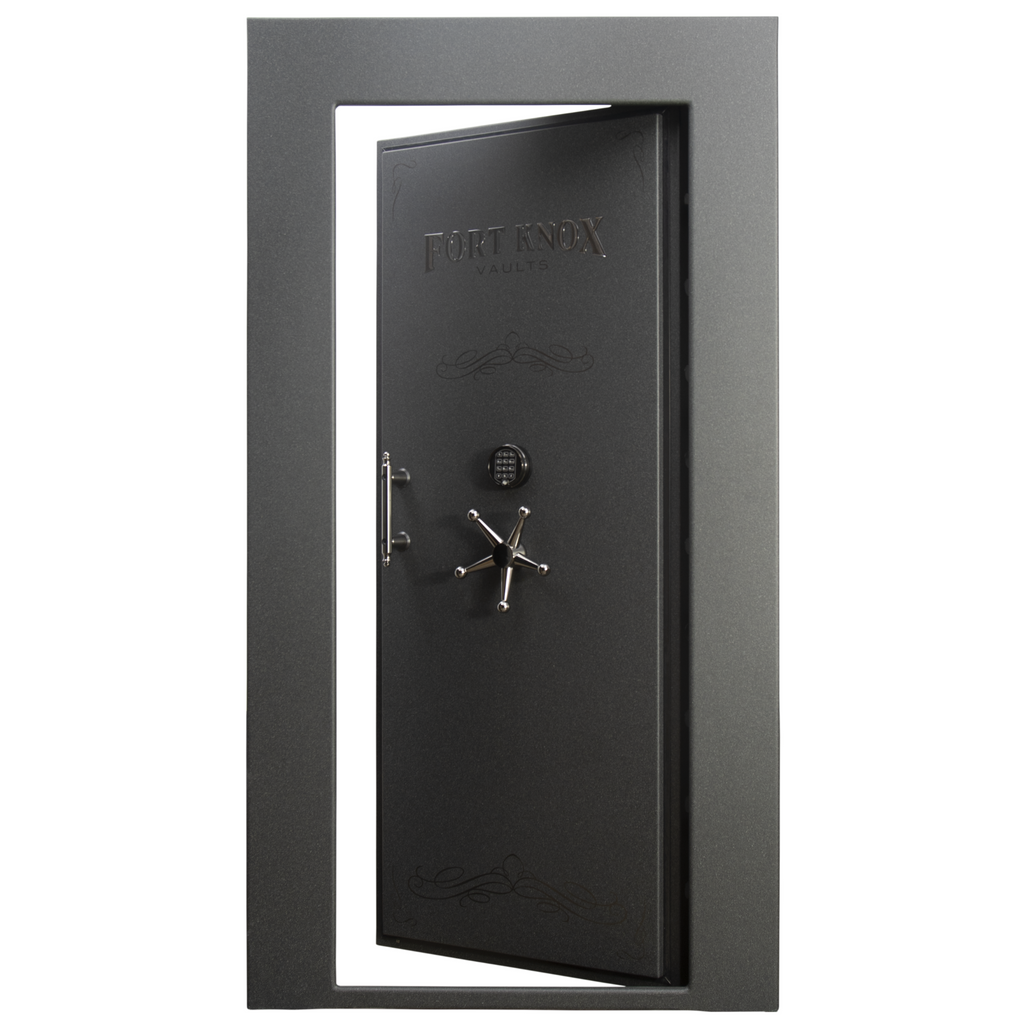

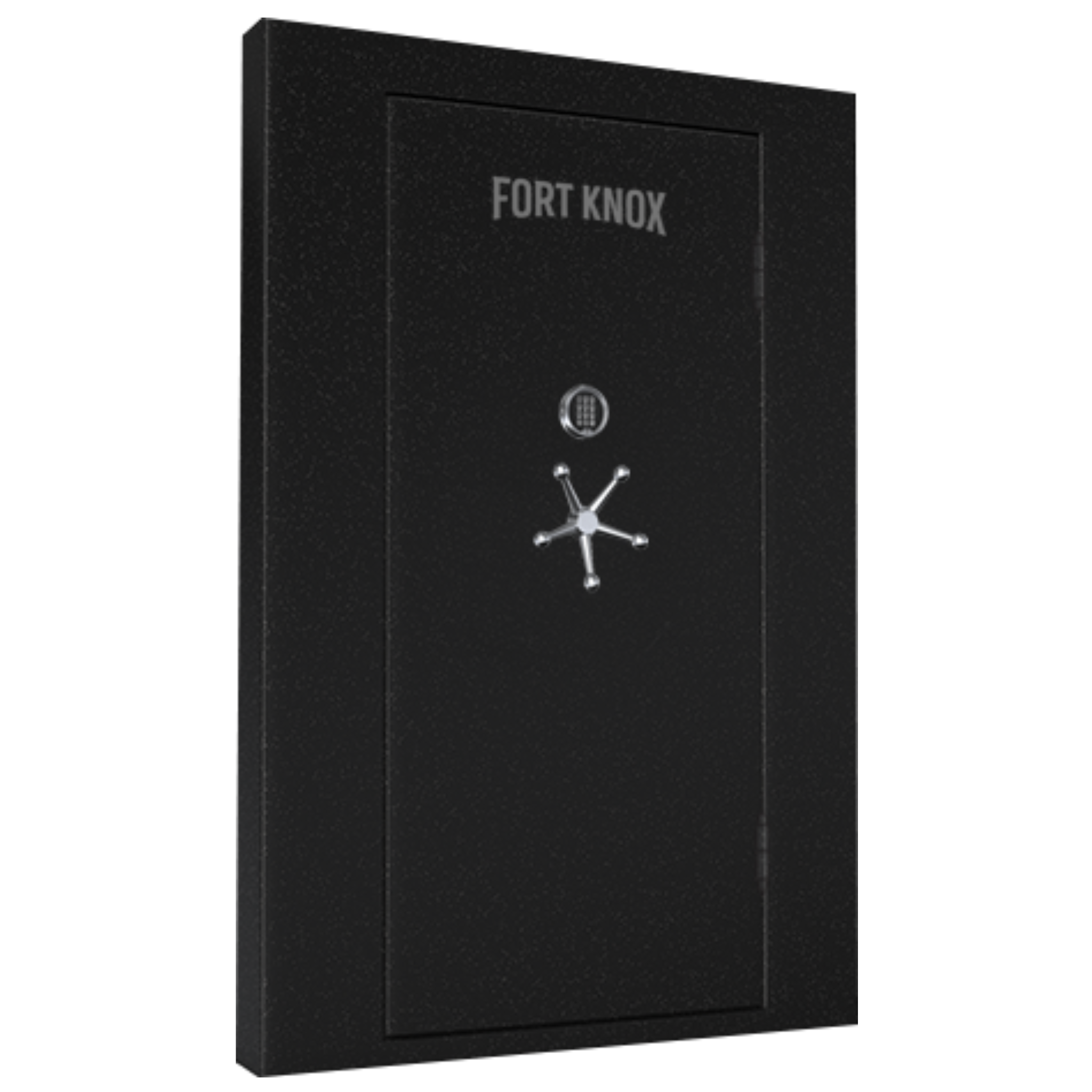

Fort Knox Vault Door 8248 In-Swing
The Fort Knox Vault Door 8248 In-Swing expands to a 48" width for easier movement of long cases and cabinetry. It secures an 82" × 48" rough opening with a 3/16" face frame, 5/8" door edge, and 19-bolt lockup — a practical upgrade when harsh Montana winters make moisture control and organization a priority inside your vault room.
Key Benefits
- In-Swing Fit: Internal hinge avoids hallway conflicts; pick left or right hinge.
- Wide Access: 48" width simplifies moving gear and cabinets.
- Solid Engagement: 19 bolts lock the perimeter for reliable security.
- Clear Build Specs: 85" × 56" including frame for planning/trim.
- Local Partner: Work with Northwest Safes of Bozeman for guidance on room build and accessories, including fire-rated safes Bozeman shoppers often pair with vault rooms.
Specifications
| Model | Swing | Rough Opening | Including Frame | Face Frame | Door Edge | Bolts | Weight |
|---|---|---|---|---|---|---|---|
| Vault Door 8248 | In-Swing | 82" × 48" | 85" × 56" | 3/16" | 5/8" | 19 | 1,580 lbs |
Why Buy From Northwest Safes of Bozeman
From measurement reviews to coordination with your GC, we make sure the opening, wall thickness, and access route are correct — then set the door cleanly and securely.
Design a wider, more workable vault room
Schedule your 8248 In-Swing site check and installation.
Frequently Asked Questions
Can I customize hinge orientation?
Yes — choose left or right to optimize traffic flow and layout.

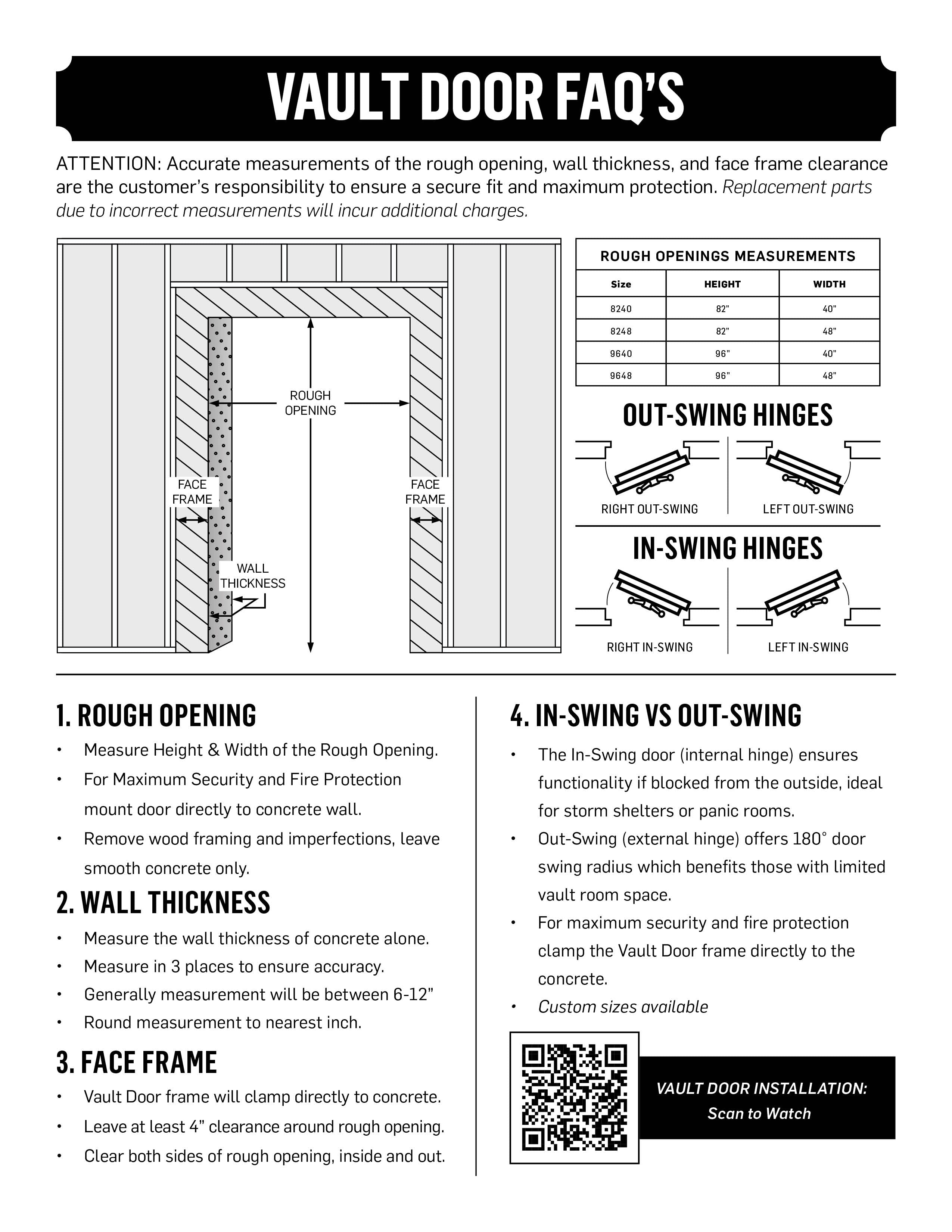

What measurements do you need before install?
Rough opening height/width, concrete wall thickness (measured in three places), and clearances around the opening.
Do you relocate vault doors?
We can help evaluate and coordinate removals/re-installs within Montana; contact us for details.
