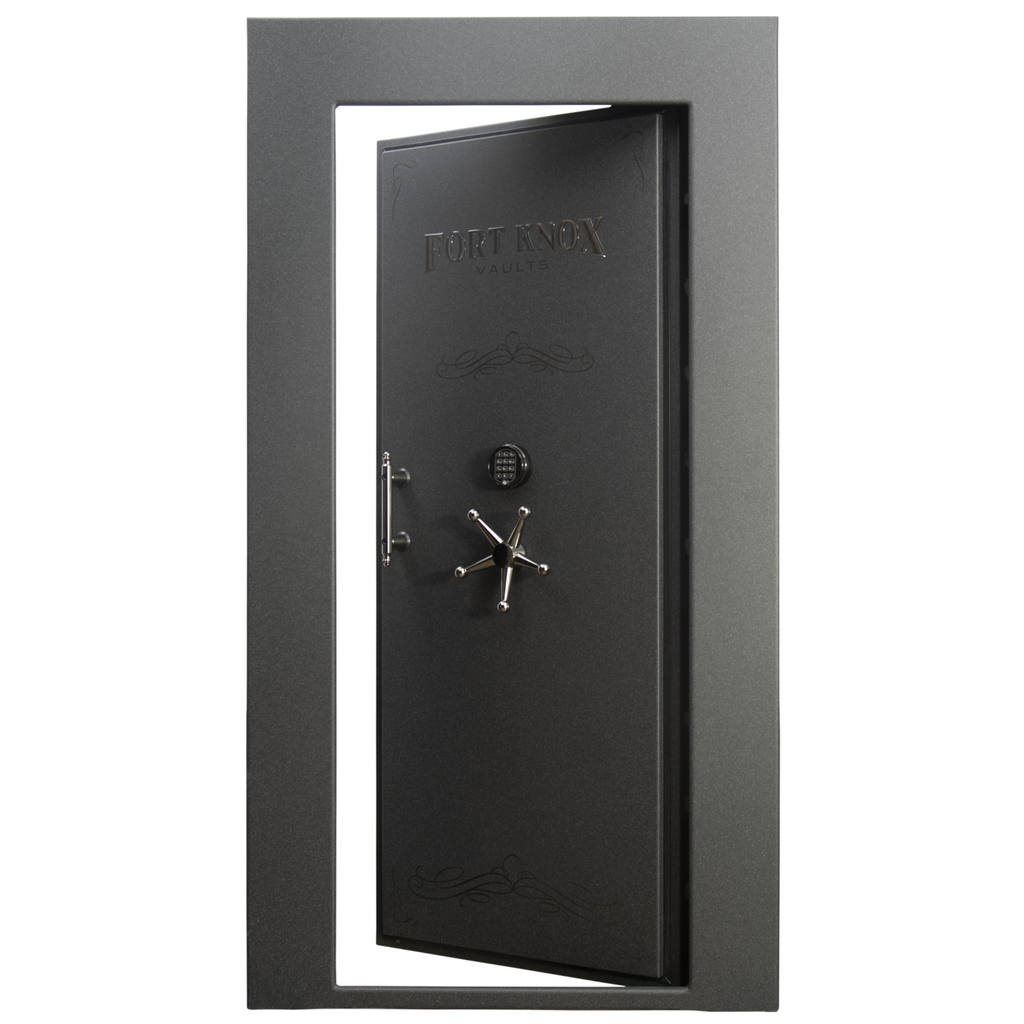

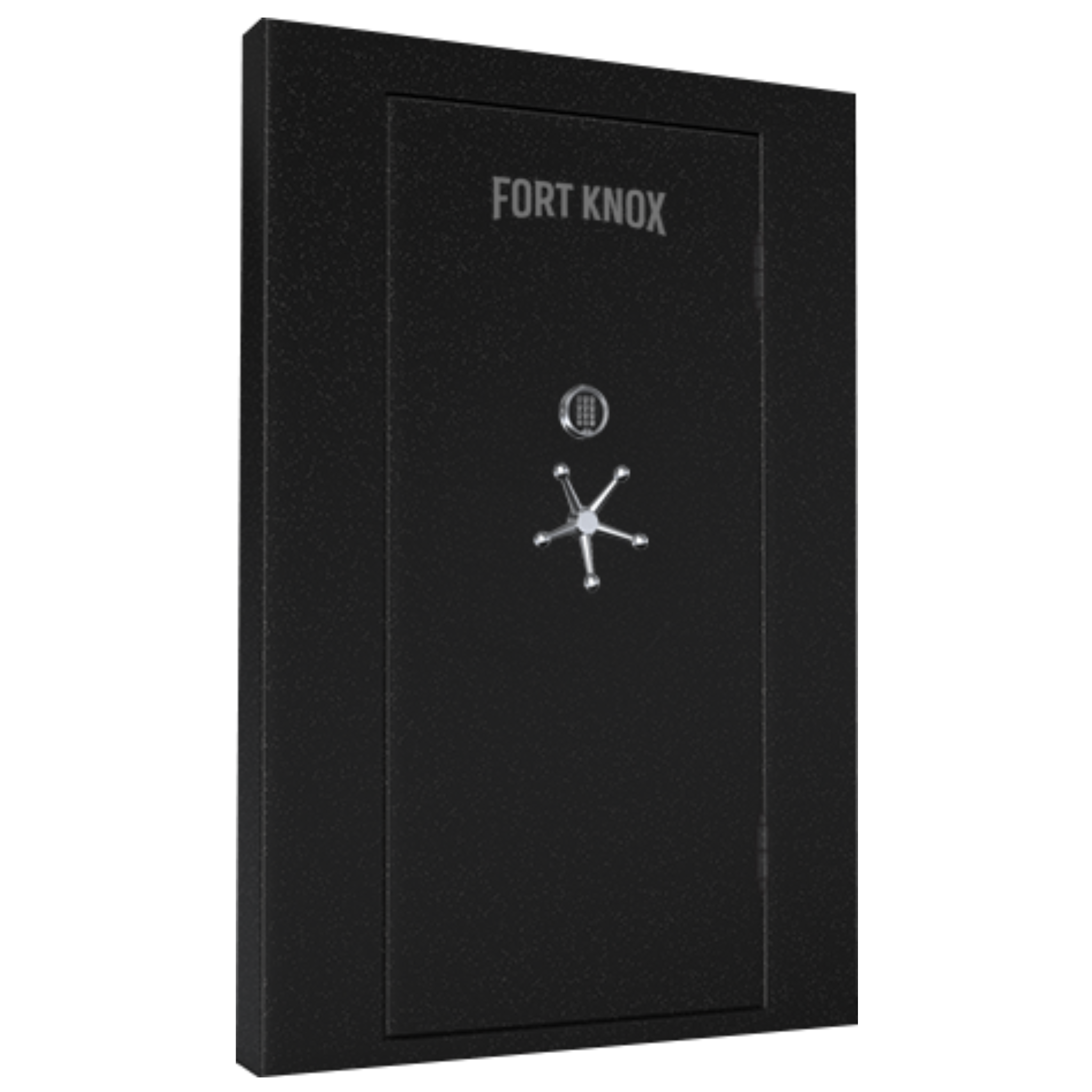

Fort Knox Vault Door 9648 In-Swing
The Fort Knox Vault Door 9648 In-Swing delivers full height and a wide 48" opening for custom cabinetry and organized layouts. It secures a 96" × 48" rough opening with a 3/16" face frame, 5/8" door edge, and 23-bolt lockup — a great fit for collectors who want protection beyond basic storage.
Key Benefits
- In-Swing Layout: Choose left/right hinge; ideal where exterior space is limited.
- Full-Size Utility: 96" × 48" opening supports ambitious interior builds.
- Perimeter Locking: 23 bolts engage the frame for confident security.
- Published Dimensions: 99" × 56" including frame helps trim go smoothly.
- Local Partner: Your Bozeman safe dealer for planning burglary-resistant safes Montana buyers often combine with vault rooms.
Specifications
| Model | Swing | Rough Opening | Including Frame | Face Frame | Door Edge | Bolts | Weight |
|---|---|---|---|---|---|---|---|
| Vault Door 9648 | In-Swing | 96" × 48" | 99" × 56" | 3/16" | 5/8" | 23 | 1,840 lbs |
Why Buy From Northwest Safes of Bozeman
We handle on-site measurement checks, access planning, and a careful, professional set-in — then remain available for service and support.
Plan your full-size secure room
Plan your full-size secure room with the 9648 In-Swing. Call to reserve a measurement review and installation date.
Frequently Asked Questions
Can I choose hinge orientation?
Yes — left or right hinges are available in both In-Swing and Out-Swing models.

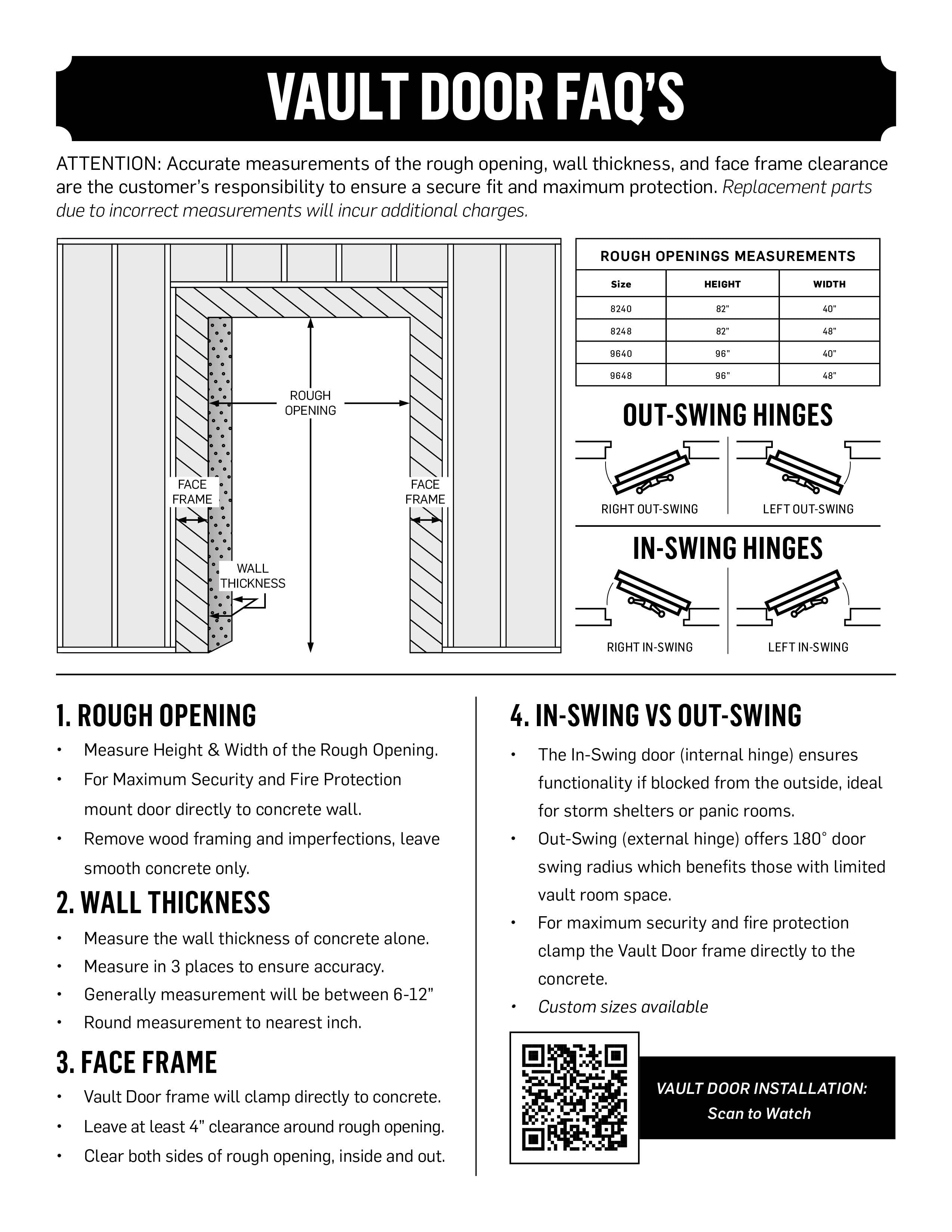

What’s required for a proper clamp?
Clear the opening to smooth concrete, verify thickness in three places, and leave 4" clearance around the opening.
Is a fire rating listed?
The door is listed as N/A for standalone fire rating; overall protection depends on the complete room build.
