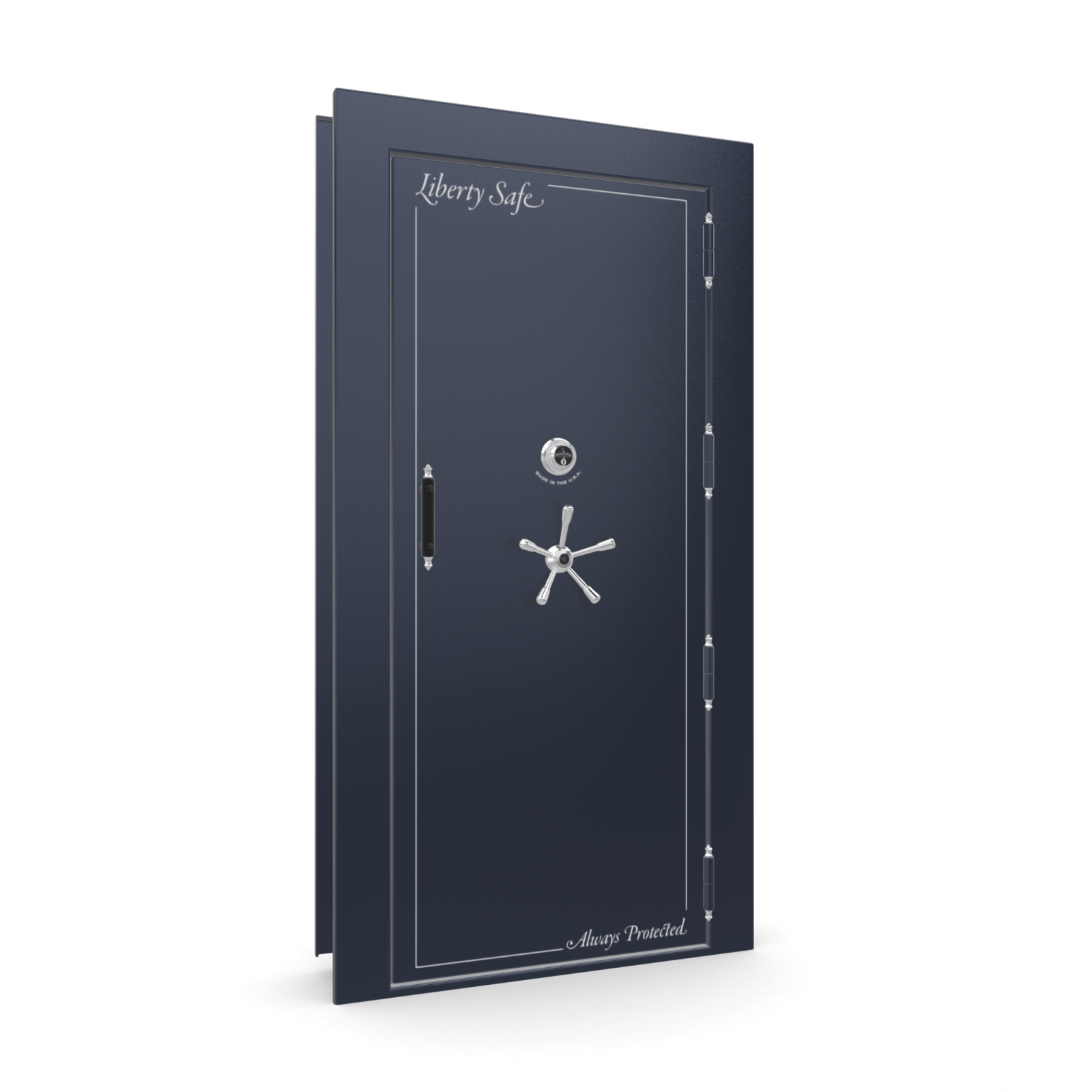

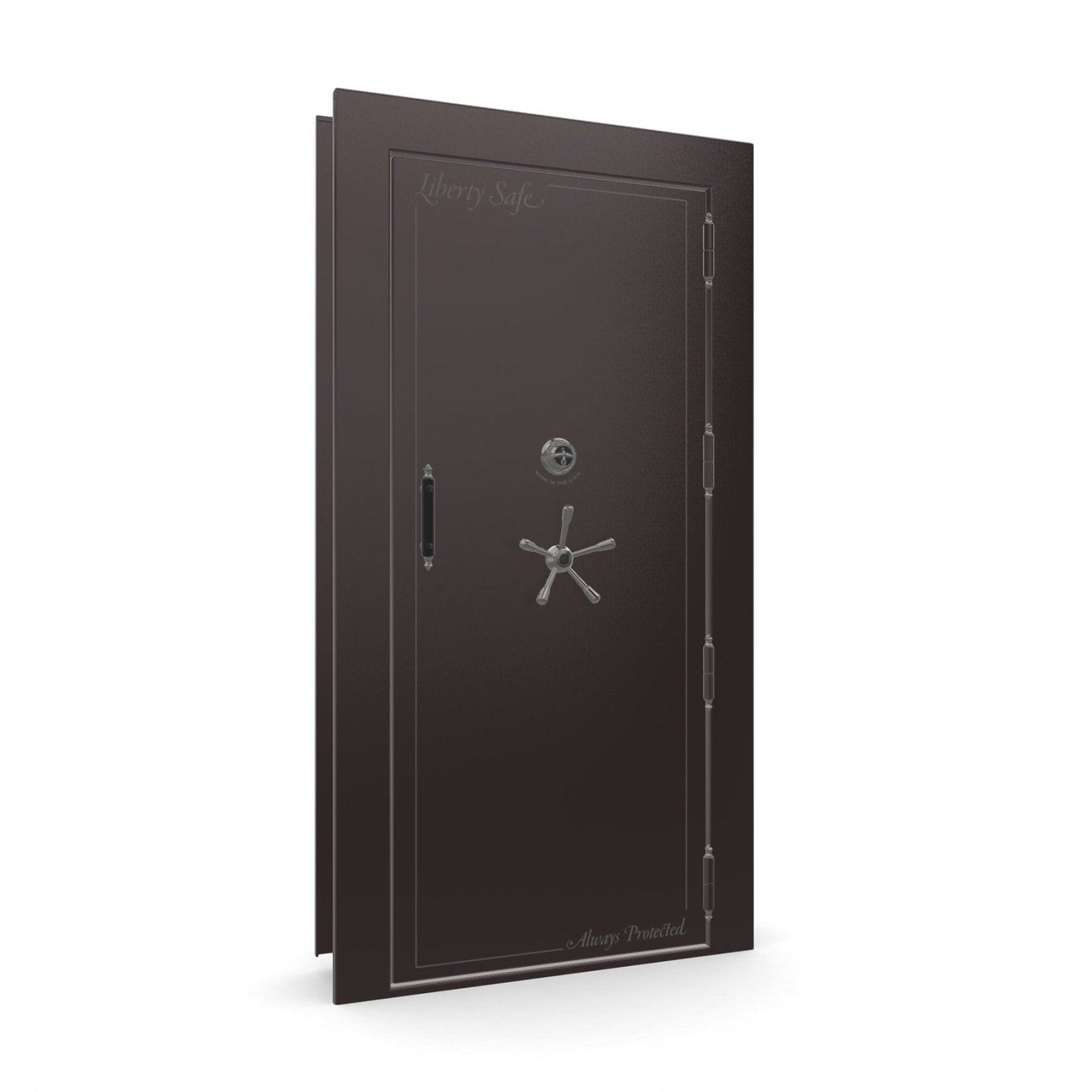

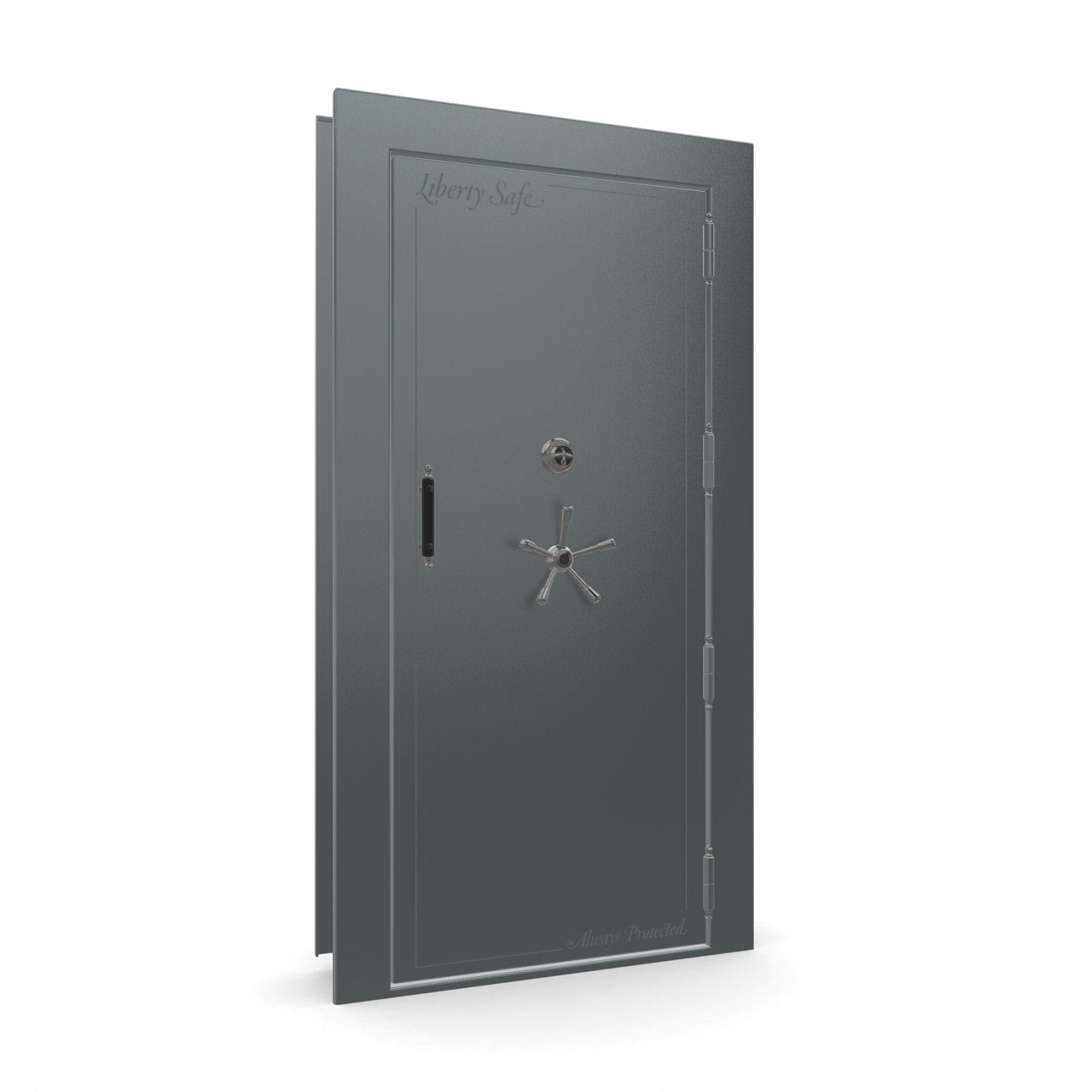

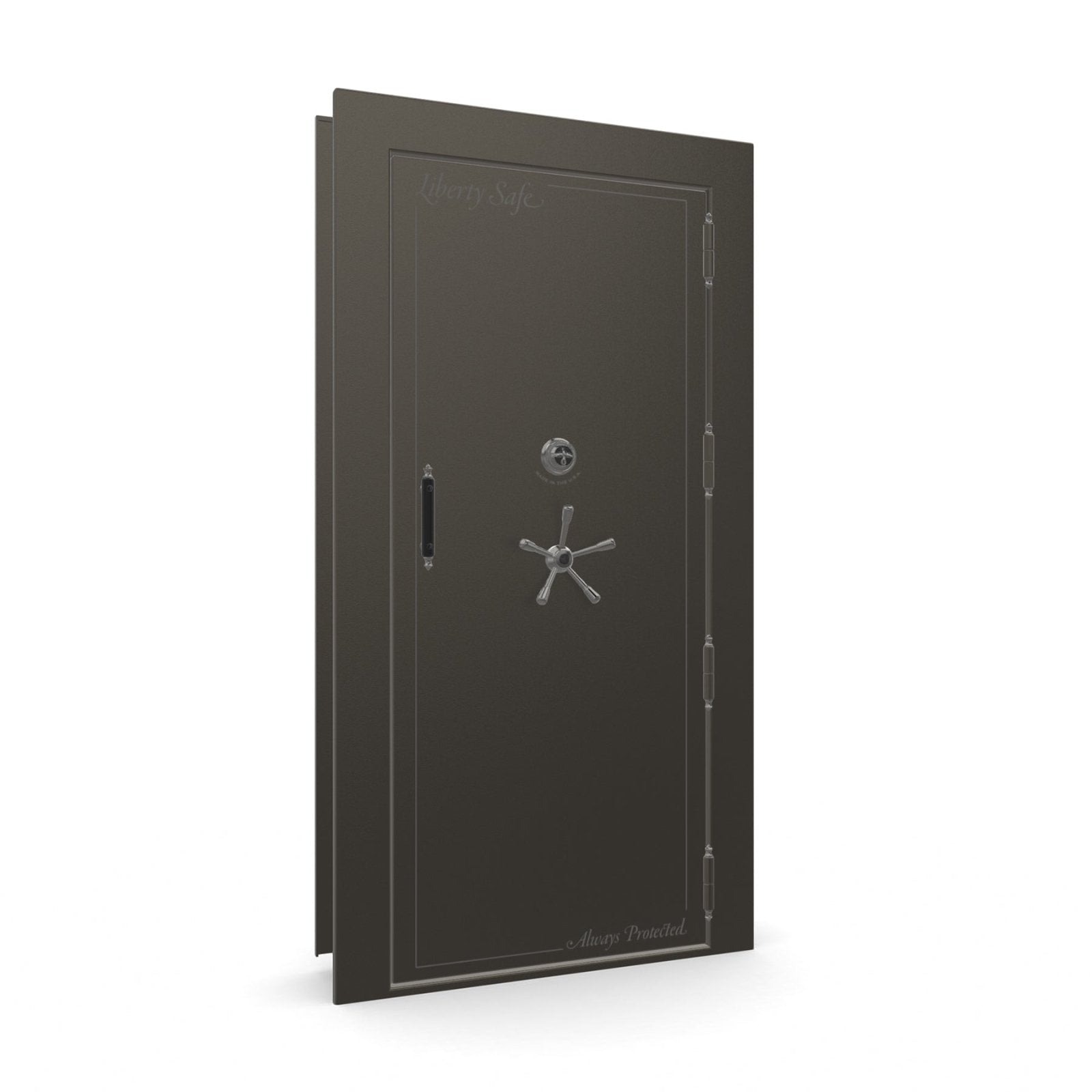

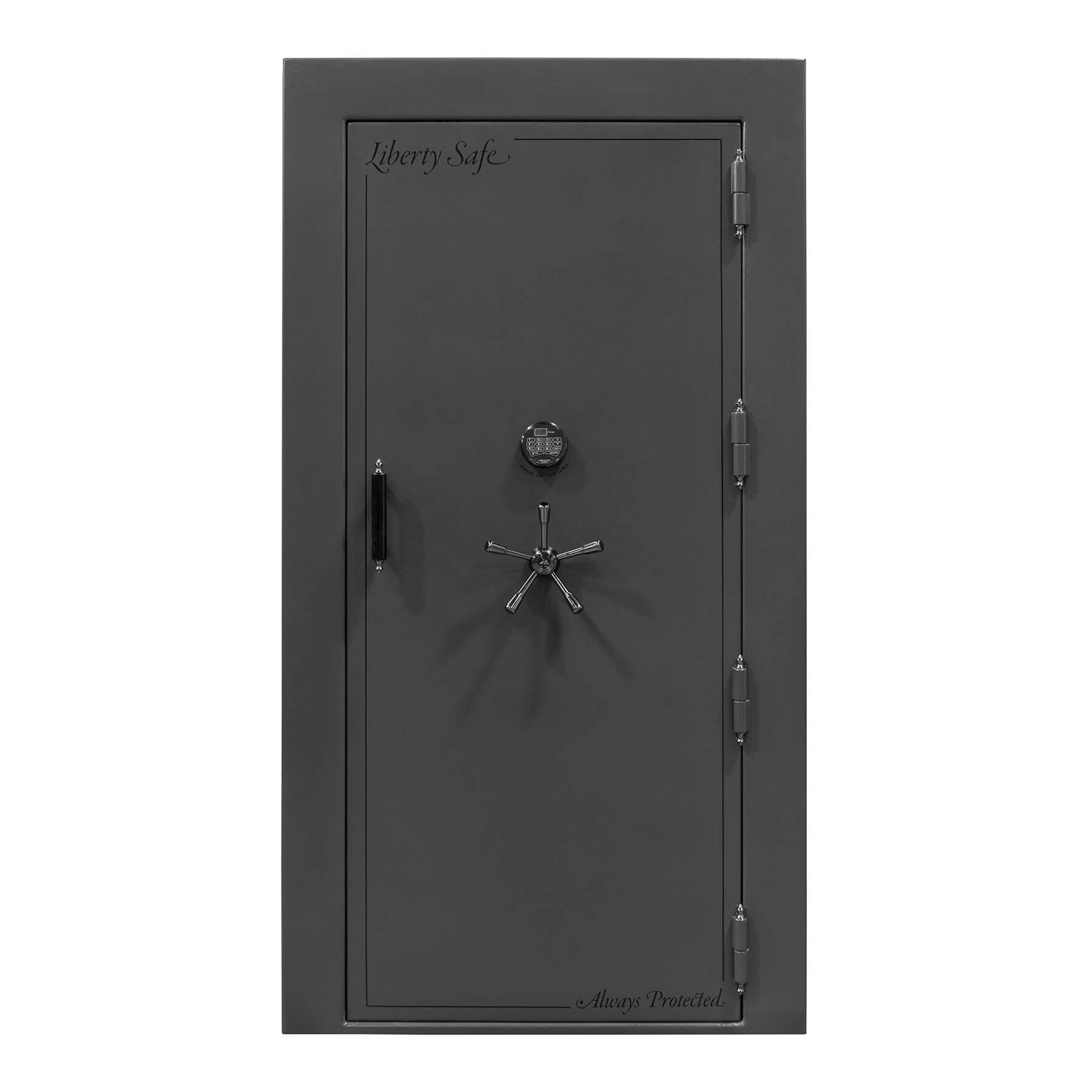

Security in this residential vault door for sale is provided by the 7 gauge frame and 1/4 inch laminate 12 gauge composite fire door with 1/4 inch steel door plate. Fire protection includes 4 layers of fireboard in the door and Palusol Heat Expanding V-Seal to keep out smoke and heat. Inside door release and panic room lock lever included. Choose your finish: your gun safe door can be made in either Textured Black or Gray Marble with a five point handle.
View Vault Door Specs
View Vault Door Installation Video
The Beast Outswing Specs
Door Dimensions: 79” x 34”
# of Locking Bars: 18
Locking Bar Thickness: 1/2"
Walkthrough Clearance: If door is opened 90°, clearance is 27”; if opened 180°, clearance is 32”
Threshold Height: 1.875”
Rough Opening Requirement: 81”-85” H x 37”-42” W x 7”-10” D

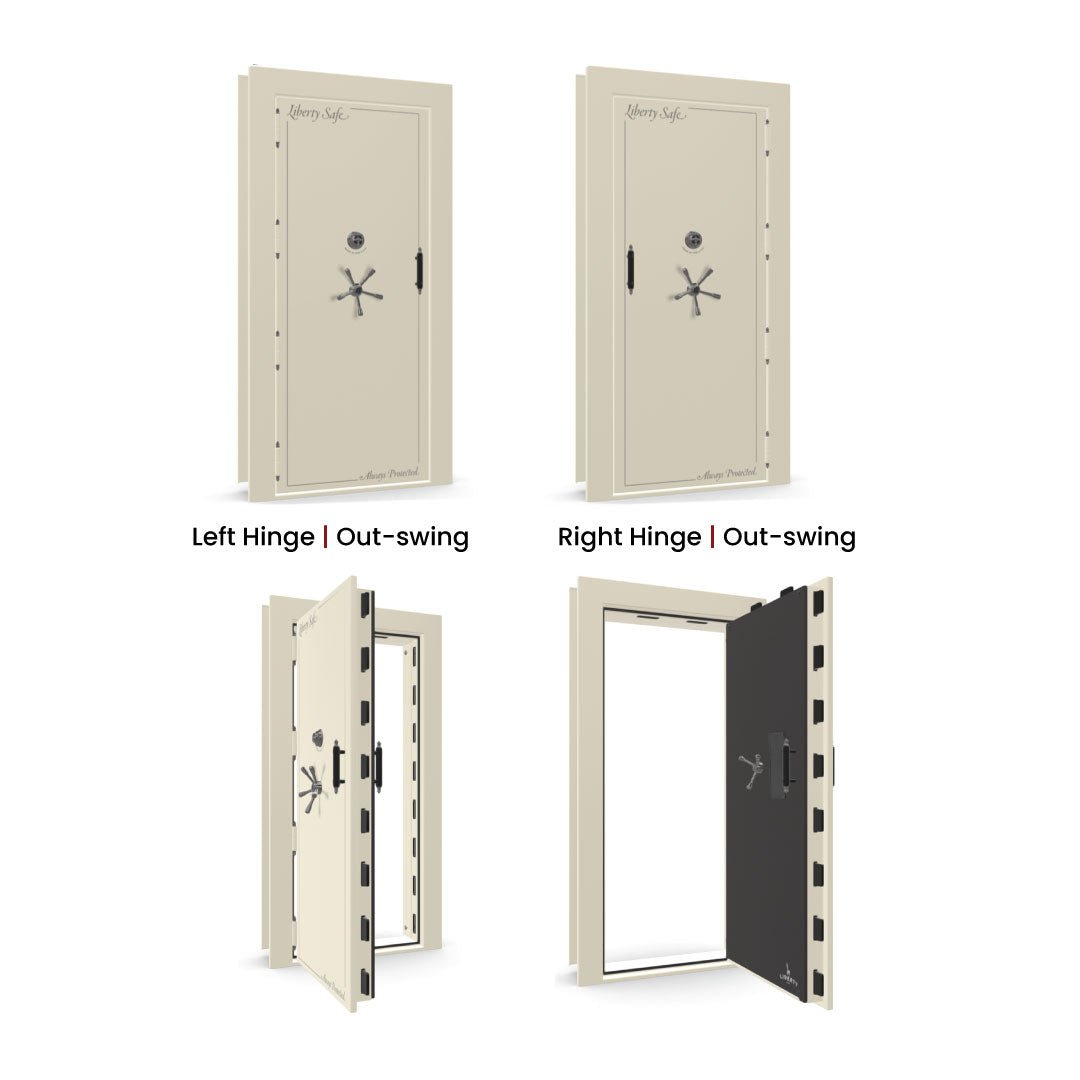

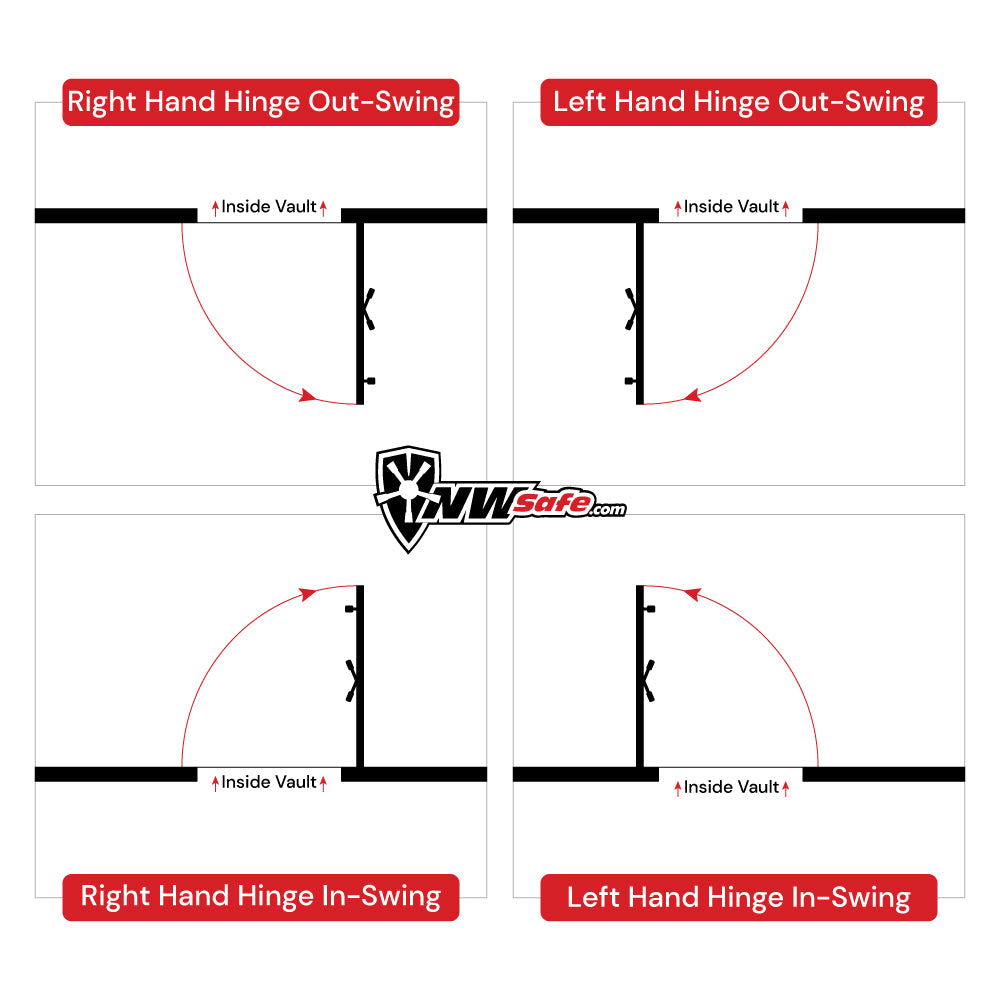

Hinge Options: Both left-hand swing and right-hand swing available
Weight: 1,245 lbs.

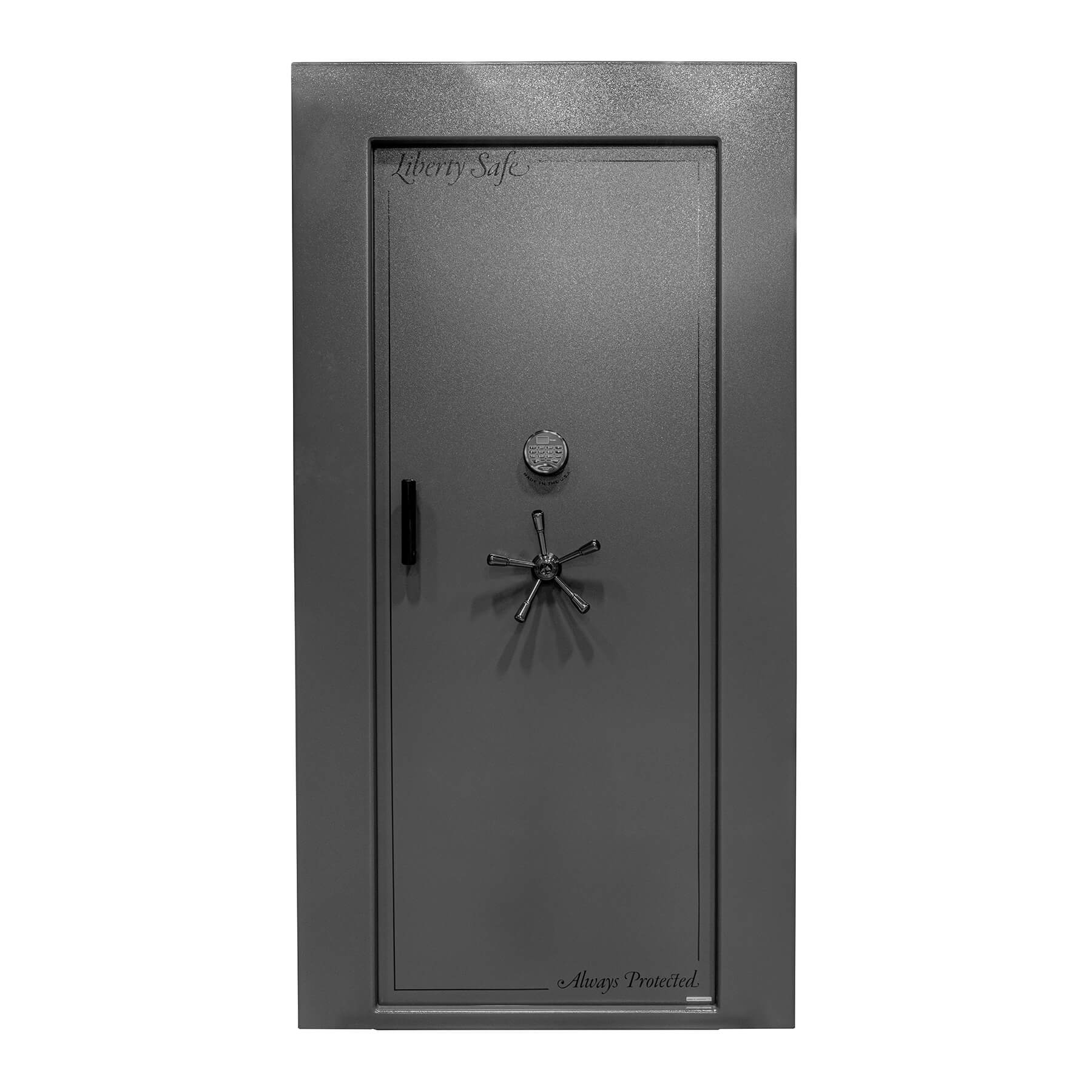

The Beast InSwing Specs
Door Dimensions: 77” x 30.5”
# of Locking Bars: 18
Locking Bar Thickness: 1/2"
Walkthrough Clearance: Door opens to 90°, giving you a clearance of 26.5”
Threshold Height: 1.875”
Rough Opening Requirement: 82.5”-85” H x 39”-42” W x 7”-9” D

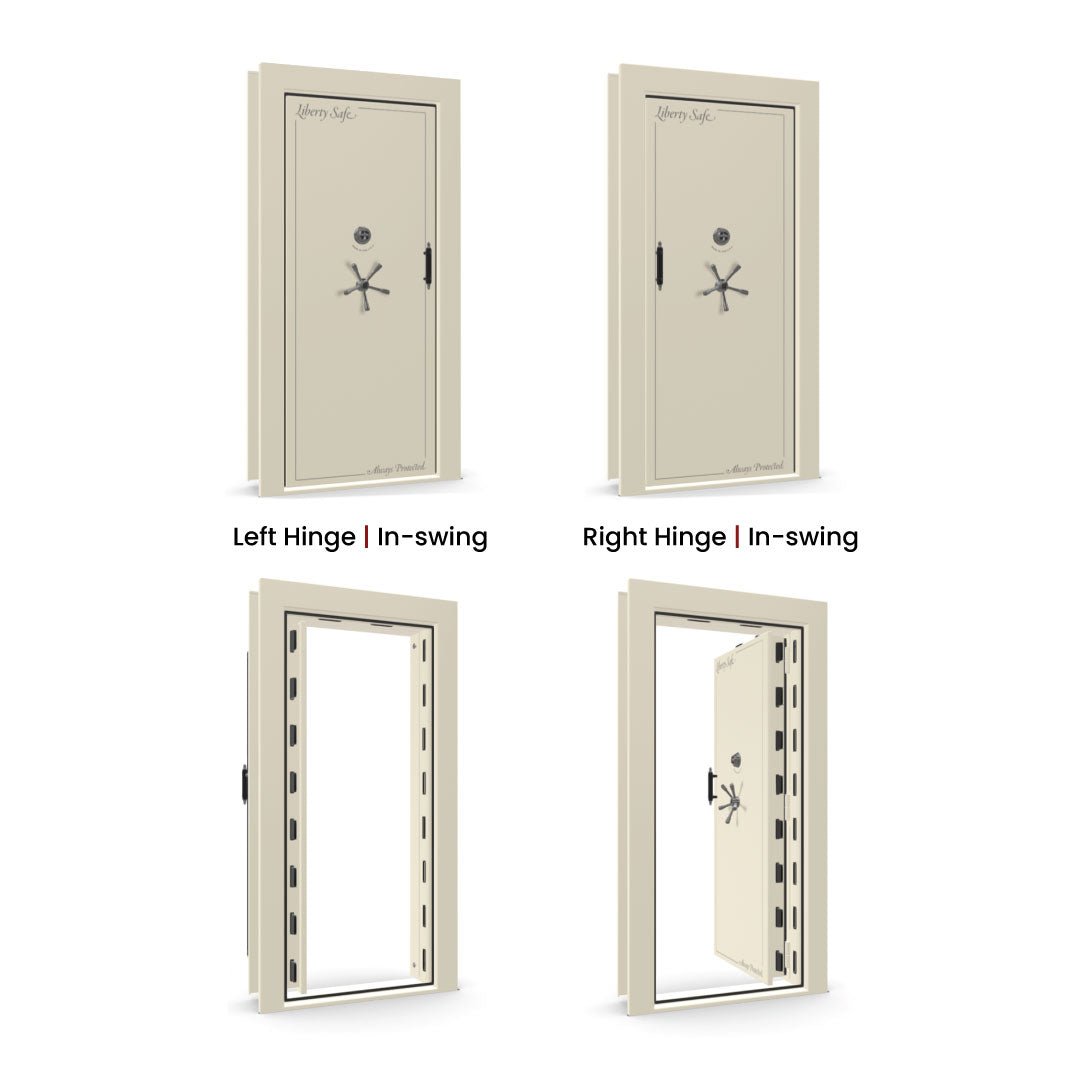

Hinge Options: Both left-hand swing and right-hand swing available
Weight: 1,245 lbs.
BLOCKADE – INSWING
Door Dimensions: 78.5” x 29.5”
# of Locking Bars: 6
Locking Bar Thickness: 1/4"
Walkthrough Clearance: Door opens to 90°‚ giving you a clearance of 29.5”
Threshold Height: 1.875”
Rough Opening Requirement: For clamshell installation: 82”-85” H x 38”-42” W x 7”-9” D; For bolt-in installation: 82”-85” H x 38”-42” W x 5” or greater D
Hinge Options: Both left-hand swing and right-hand swing available
Weight: 655 lbs.
Overall Specs
Fire Protection
- Ultimate fire and heat protection in the Vault Door - 4 total layers in door (2 layers of 1/2 inch fireboard sandwiched in the composite door plus 2 layers of 5/8 inch added including door panel)
- Palusol™ Heat Activated door seal expands to seal door edge protecting contents from harm
Security
- UL™ Listed S&G™ mechanical lock comes standard with optional electronic lock available for purchase
- High End Gear Driven Door

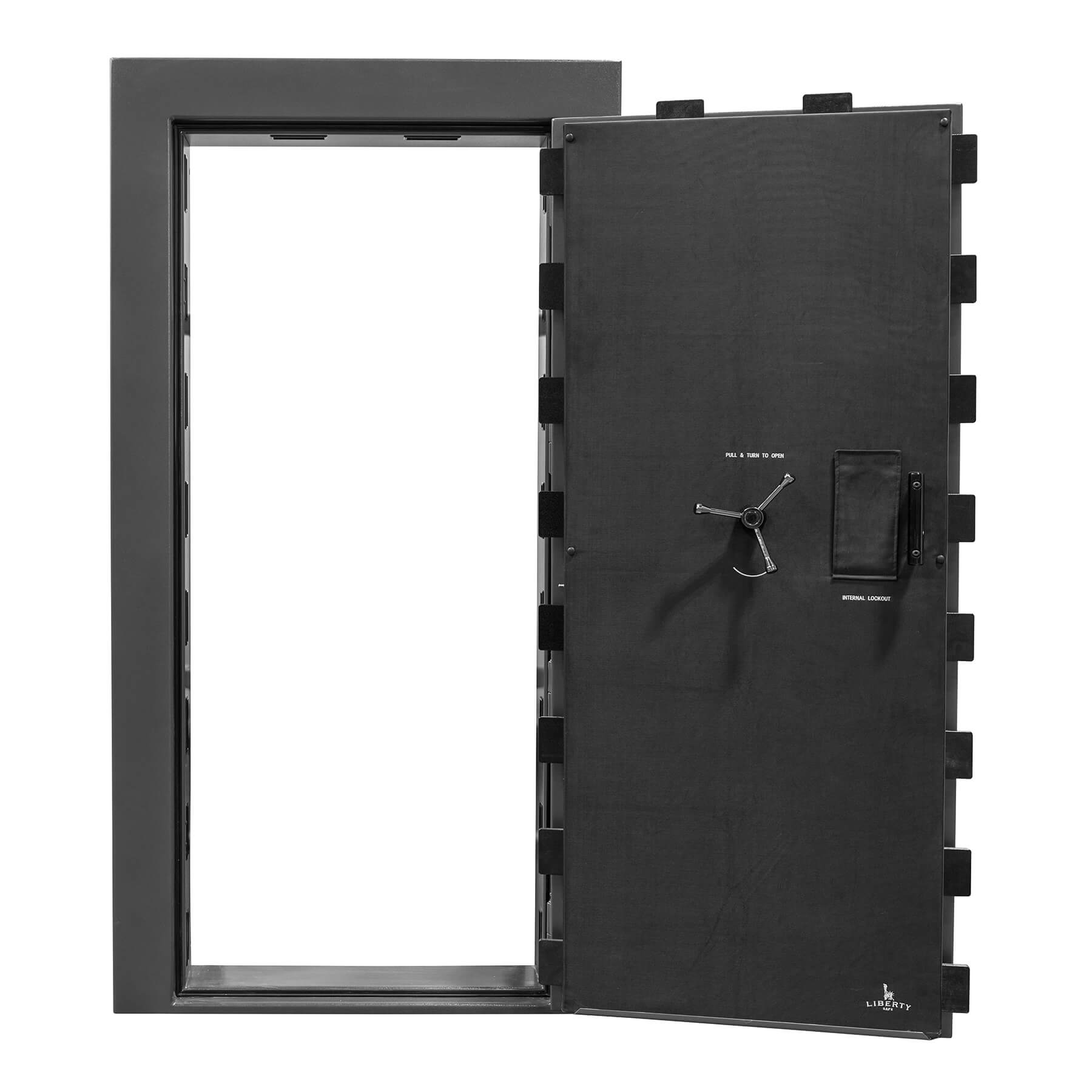

- Defensive perimeter of 18-1/2 inch diameter military style locking bars

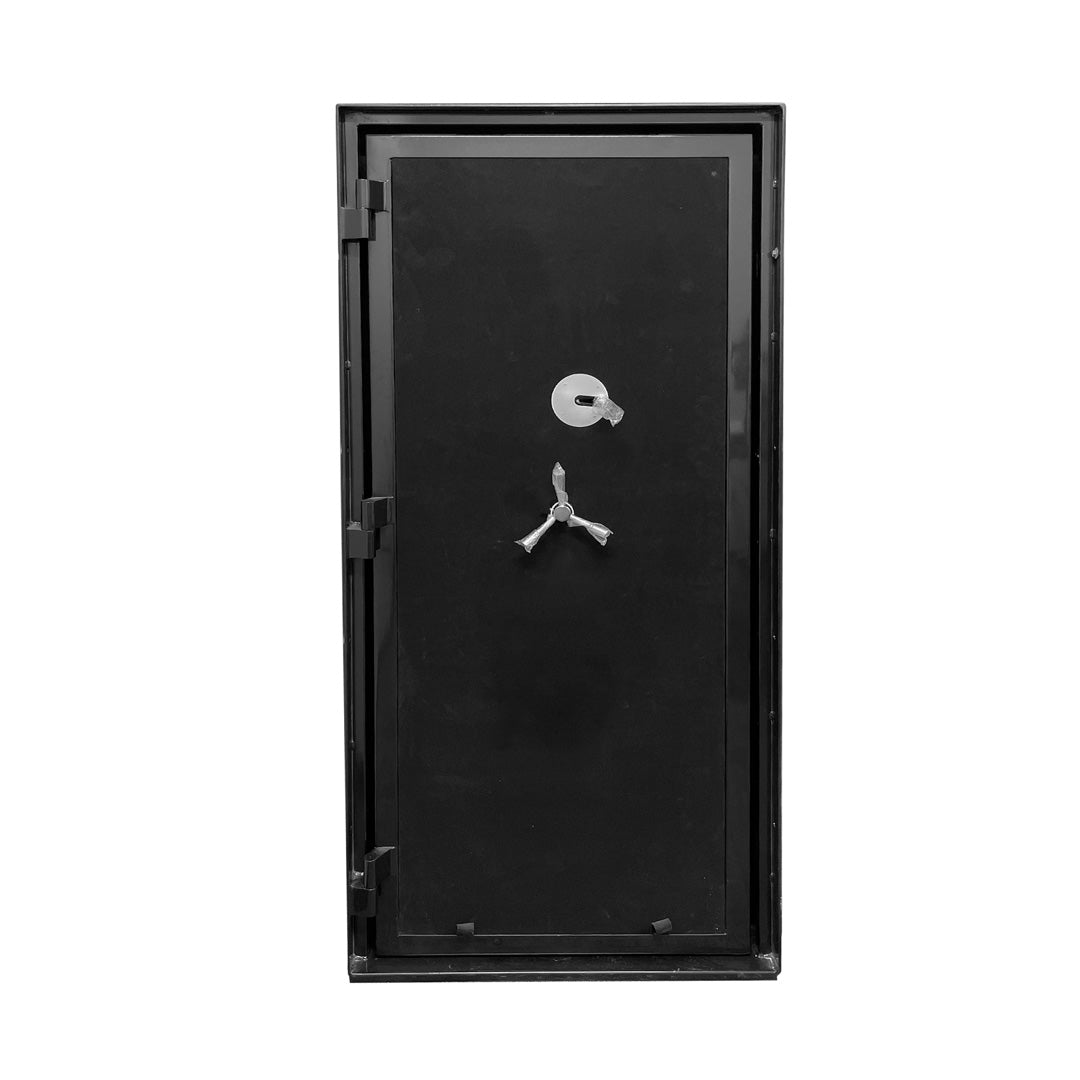

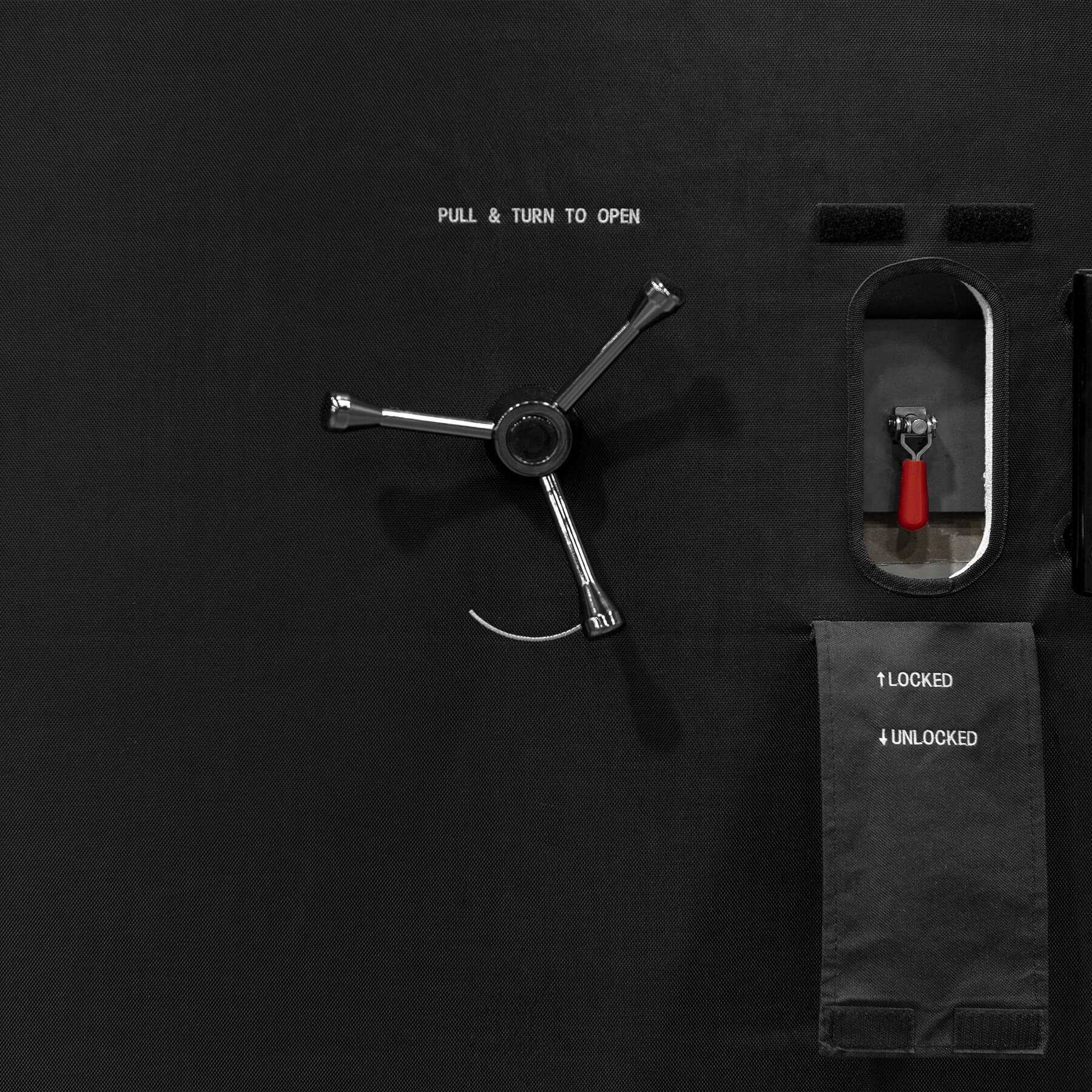

- Inside 3-point handle release mechanism

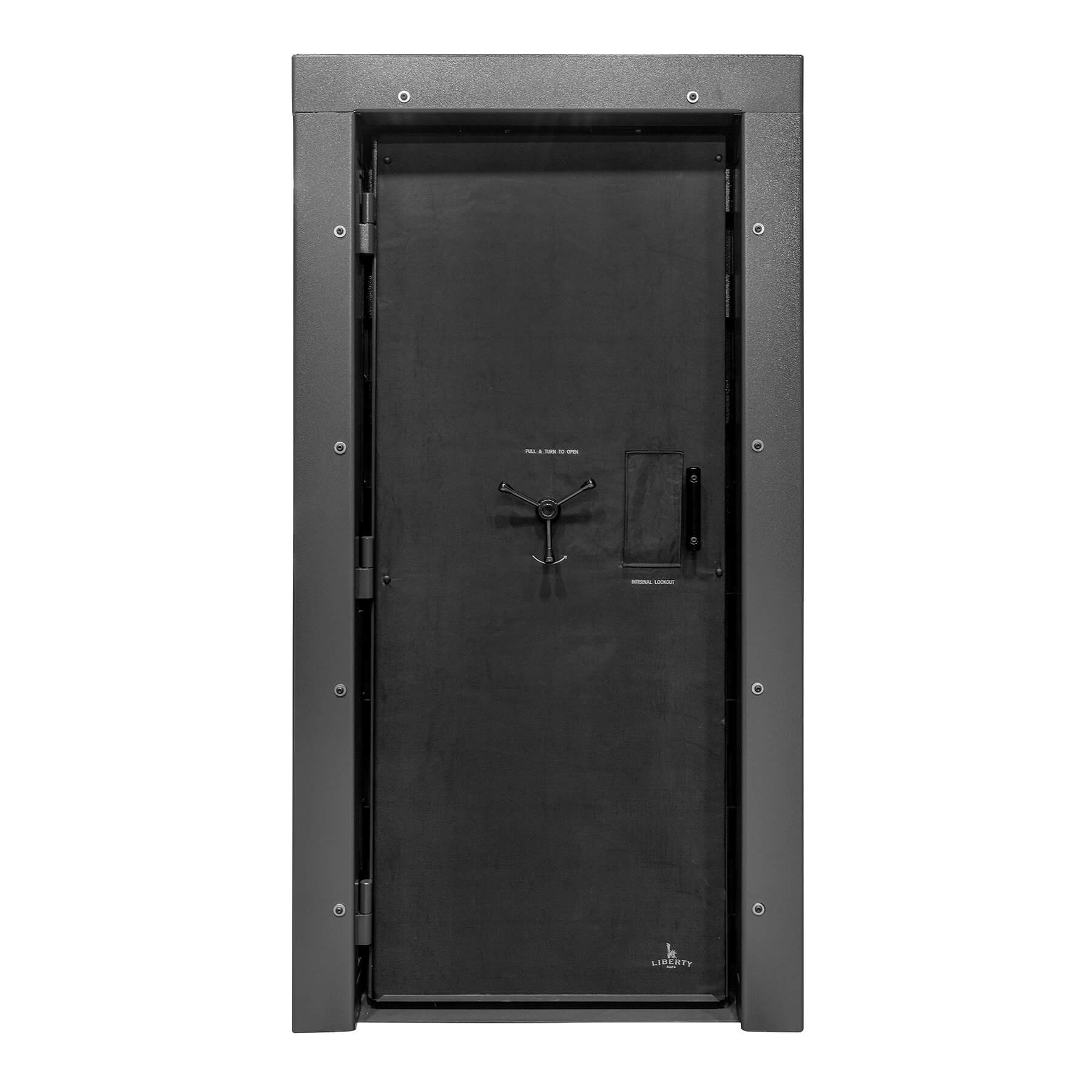

- Internal Lockout Red Lever Switch - Locks up the residential vault door from the inside to prevent door from opening
- Door Type: Composite Plate-Steel
- Door Thickness: 5.5" door width, 6.875" min wall width, 8" typical wall width, 9.875" max wall width (More if you remove side clamp bolts)
- Door Bar / Bolt Sides: 3-Sides
- Bar / Bolt Type: 4-Inch Wide, 1/2-Inch Thick Military Style Locking Bars

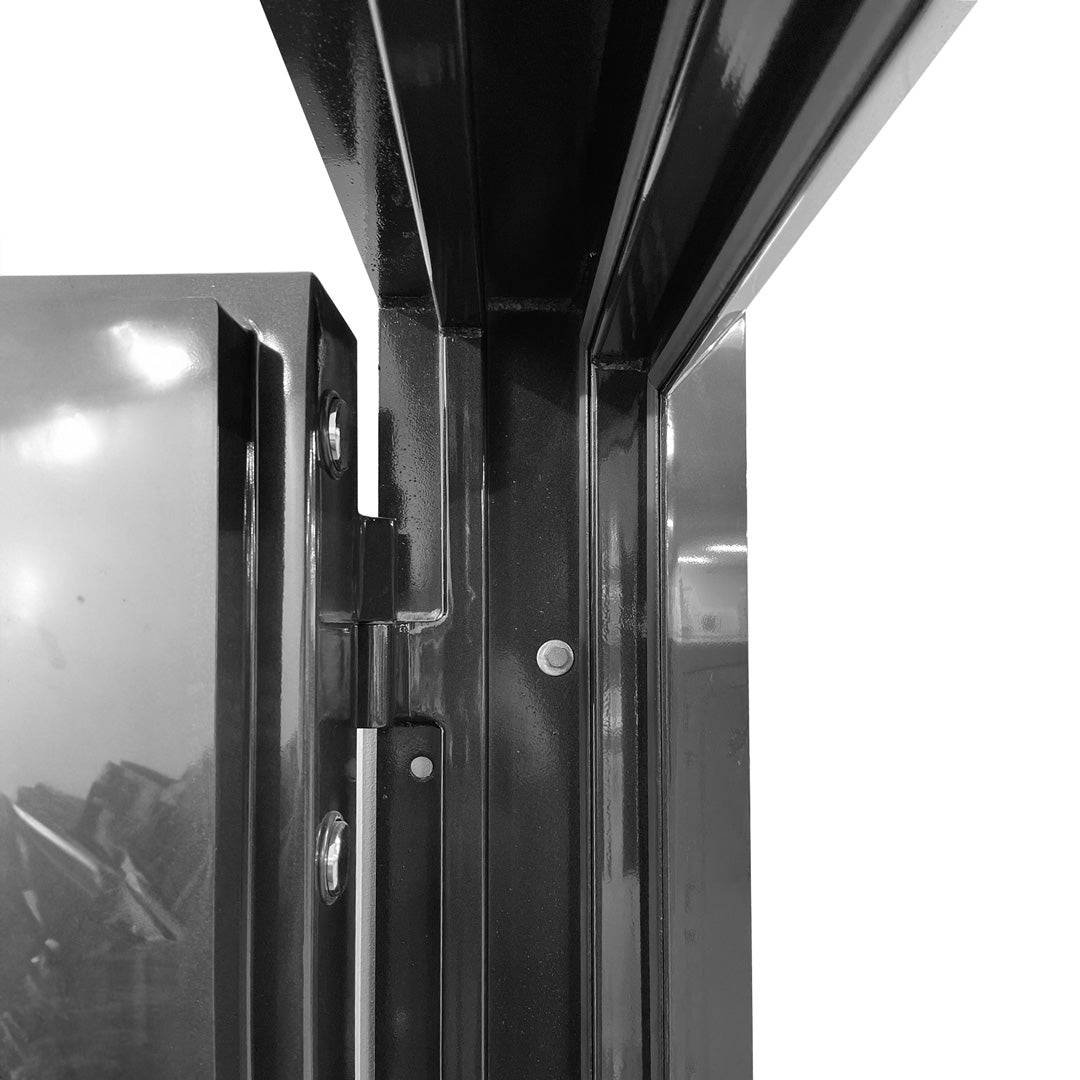

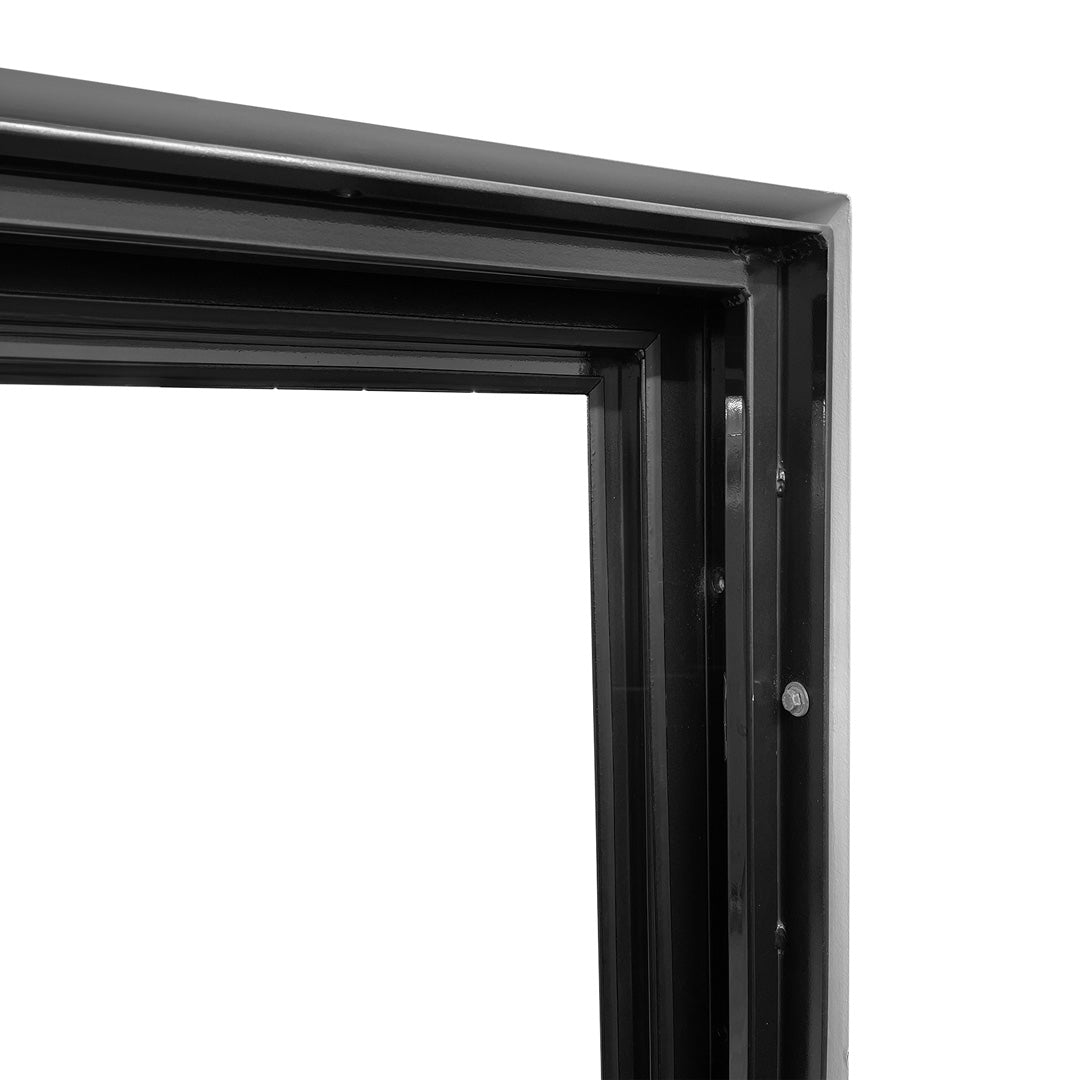

- Body Steel Thickness: 7 ga. frame / 12 ga. composite door with 1/4 in. inner steel door plate
- Lock: S&G™ Mechanical Lock Standard with optional SecuRam Prologic Electronic Lock
- Relocker Type: Fail-Safe™ Thermal/spring-loaded inside lock plus External spring-loaded
- Locking Mechanism Type: Gear Driven Door
Style & Function

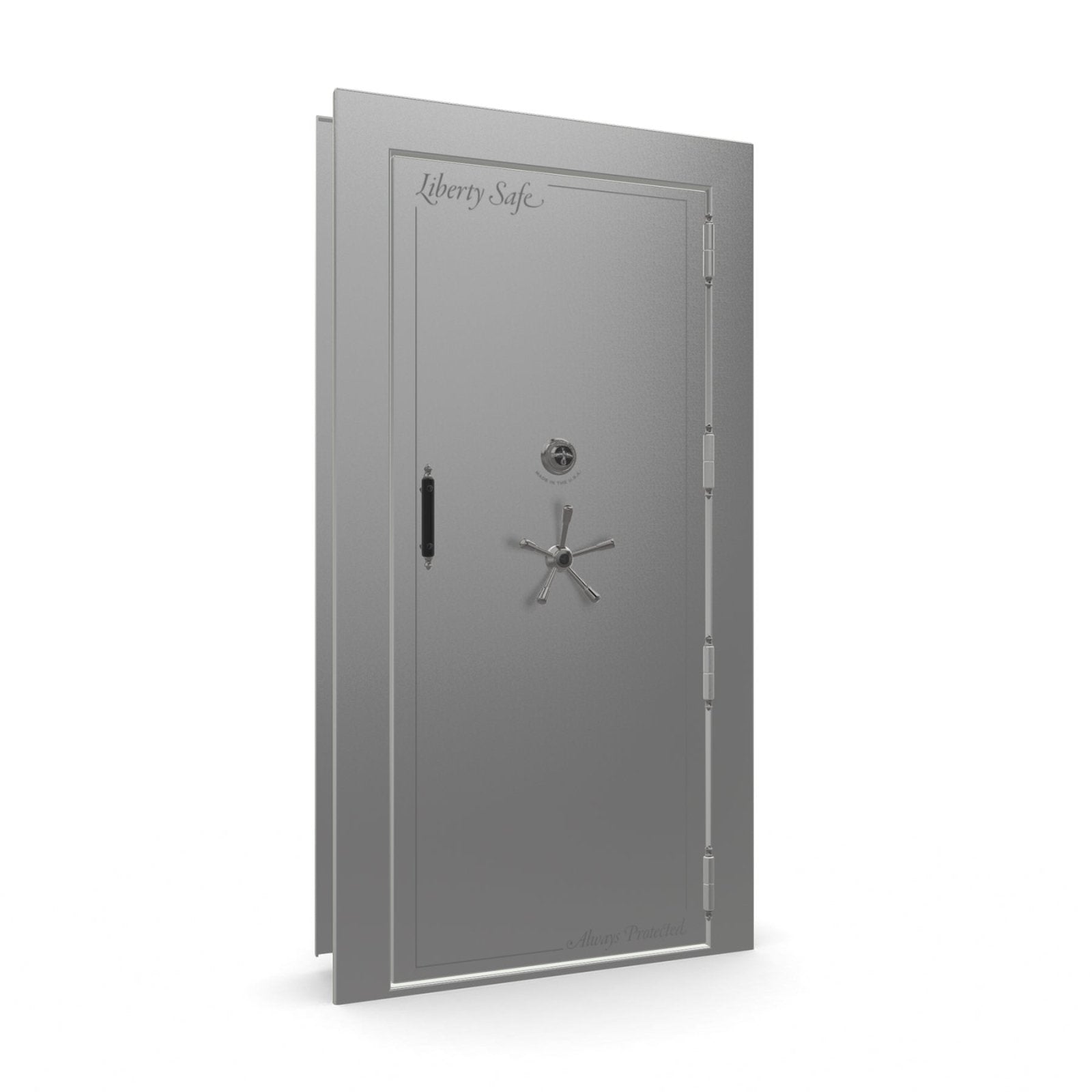

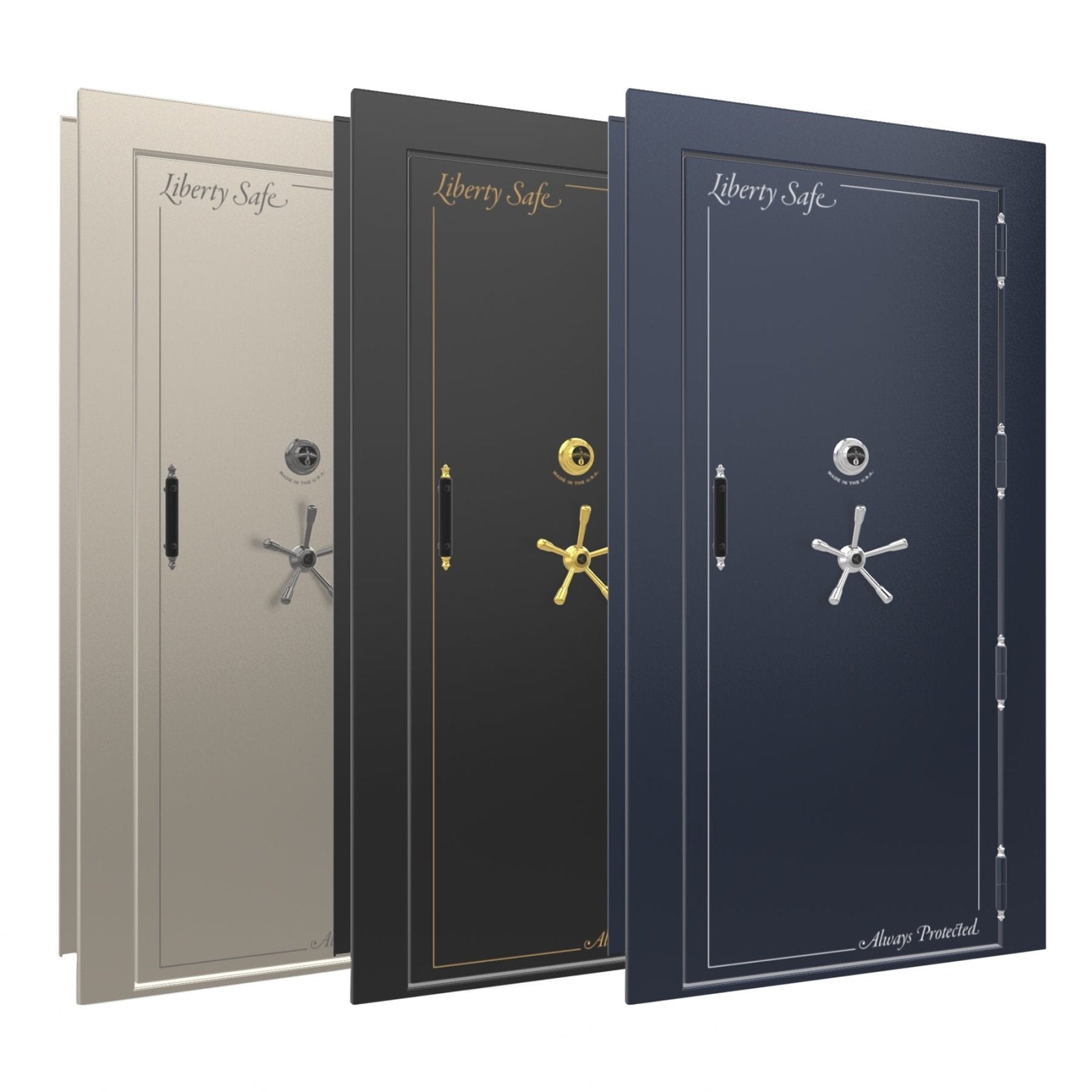

- Available in Gray Marble and Textured Black finishes
- 5 Spoke External Handle, 3 Spoke Internal Handle
- Durable Fabric Door Panel
- 32 in. Wide x 77 in. Tall Walk Through Opening
- Internal Lockout Switch to Lock the Vault Door from the Inside
